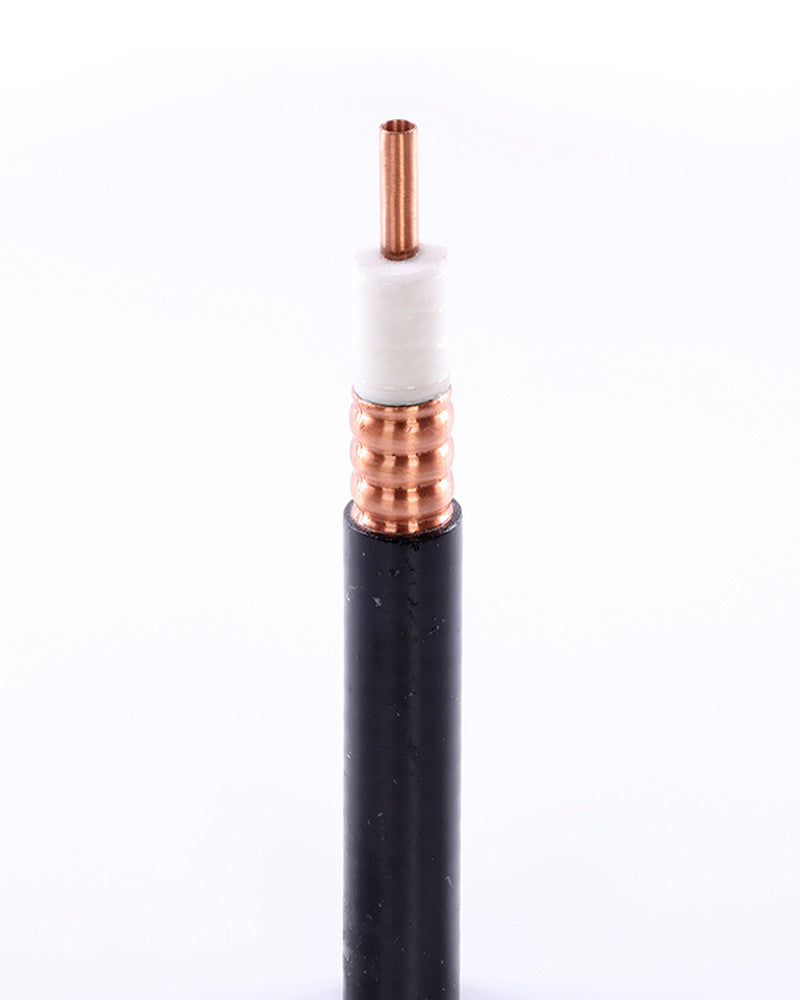

½” Superflex Feeder Cable

Availability: 99 left in stock

SKU: RP08007

$100.00$140.00-29%

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Reviews

• Copper Superflex Feeder Cable	• Low VSWR
• High Reliability	• Simple Installation

Technical Data

Part Number			FR-FC4000-12-XX-XS
Construction
Inner Conductor	Material		Copper Clad Aluminum
	Diameter	mm	3.6
Insulation	Material		Physically Foamed PE
	Diameter	mm	10.3
Outer Conductor	Material		Ring Corrugated Copper
	Diameter	mm	11.90
Jacket	Material		PE
	Diameter	mm	13.4
Electrical Specifications
Characteristics Impedance		Ω	50
Capacitance		p F/M	82
Velocity		%	81
Insulation Resistance		MΩ/km	> 1 × 104
Peak Power Rating		kW	19
Cut off Frequency		GHz	10.2
DC Breakdown Voltage		kV	2.5
Frequency (MHz)			Attenuation (@20˚C, dB/100)
150			4.2
450			7.6
800			10.2
900			10.8
1800			16.0
2000			17.0
2500			19.0
3000			21.5
3800			25.0
VSWR
DC-2200MHz			≤ 1.15
2200MHz-2600MHz			≤ 1.15
2600MHz-3800MHz			≤ 1.20
Mechanical Specifications
Bending Radius	Single Bend	mm	25
	Repeated Bend	mm	30
Tensile Strength		N	800
Crush Resistance		kg/mm	1.0
Environmental Specifications
Temperature Range		°C	-40 to +70
Installation Temperature Range		°C	-40 to +60
Storage Temperature Range		°C	-40 to +70
