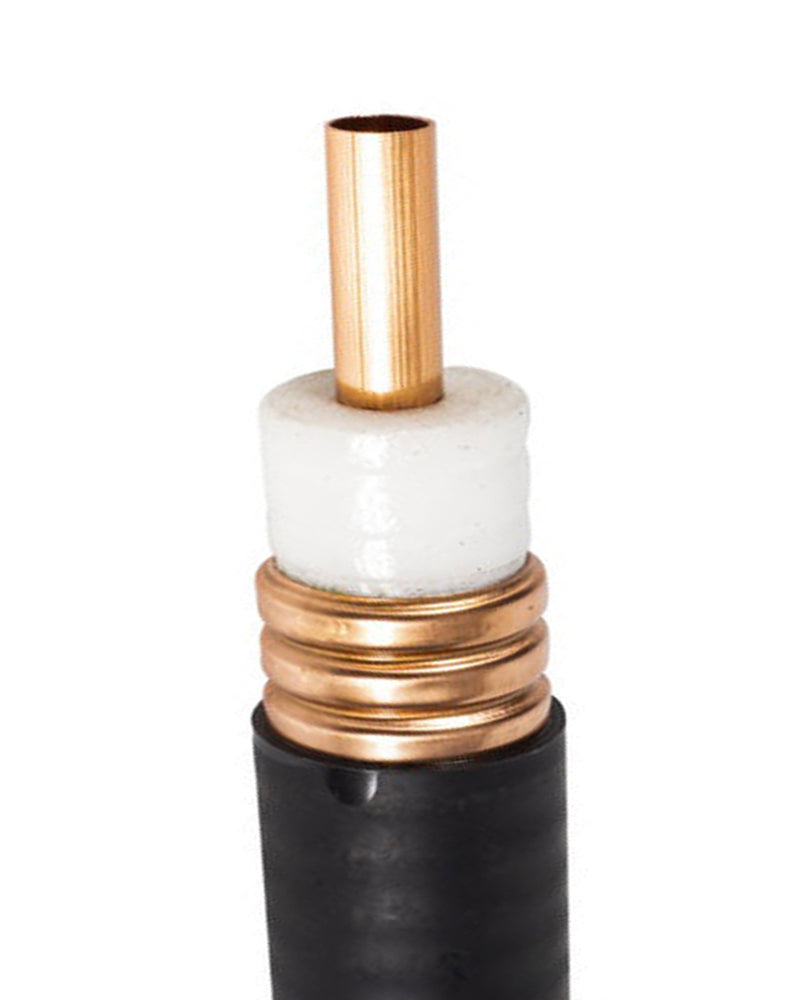

1-5/8" Feeder Cable

Availability: 100 left in stock

SKU: RP08002

$100.00$110.00-9%

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Reviews

• Low VSWR	• Copper Feeder Cable
• PE or Fire Retardant, LSZH	• Supports upto 2.7 GHz frequency.
• Compatible with a variety of RF connectors for seamless integration into RF systems.

Technical Data

Part Number			FR-FC2700-158-XX-XX
Construction
Inner Conductor	Material		Copper Clad Aluminum
	Diameter	mm	17.50 ± 0.15
Insulation	Material		Foam PE
	Diameter	mm	42.40 ± 0.50
Outer Conductor	Material		Corrugated Copper Tube
	Diameter	mm	46.50 ± 0.40
Jacket	Material		PE or FRLSZH
	Diameter	mm	49.10 ± 0.50
Electrical Specifications
Characteristics Impedance		Ω	50 ± 1
Capacitance		p F/M	76
Velocity		%	86
Cut off Frequency		GHz	2.7
DC Breakdown Voltage		kV	11
Frequency (MHz)			Attenuation (@20˚C, dB/100)
150			0.85
450			1.56
800			2.17
900			2.34
1800			3.54
2000			3.78
2500			4.36
2700			4.55
VSWR
DC-2200MHz			≤ 1.13
2200MHz-2700MHz			≤ 1.15
Mechanical Specifications
Bending Radius	Single Bend	mm	300
	Repeated Bend		510
Environmental Specifications
Standard Jacket Temperature		°C	-40 to +70
Fire Retardant Jacket Temperature		°C	-25 to +70
