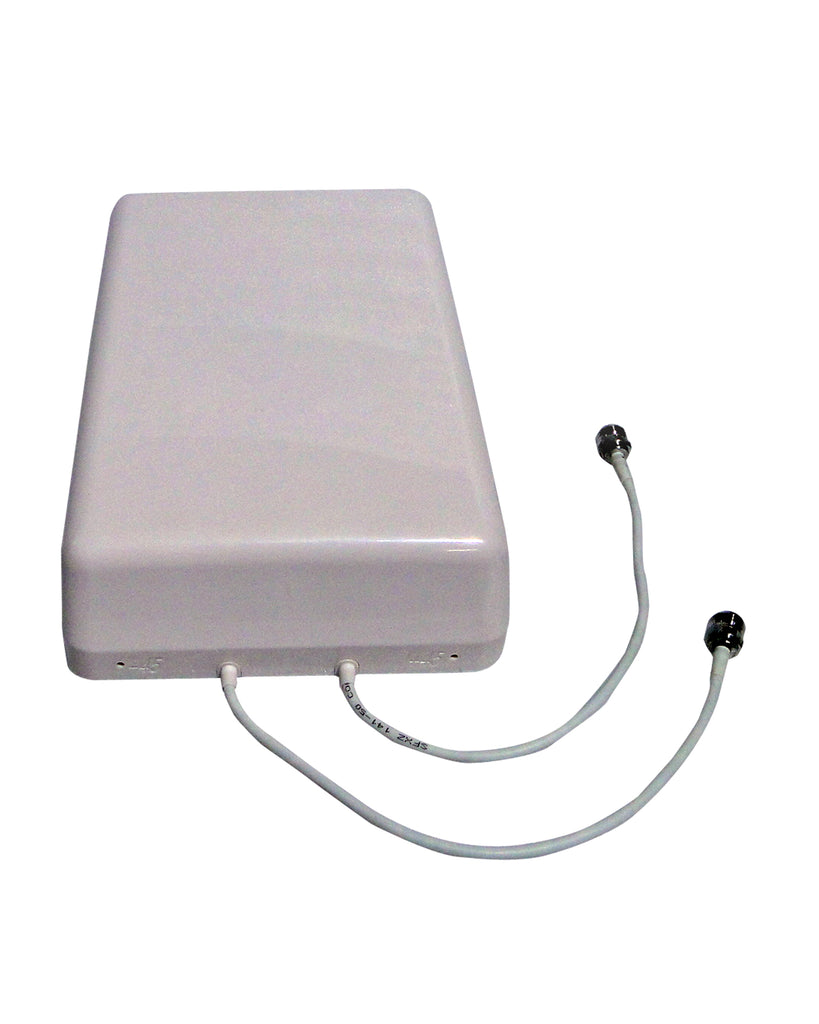

Panel Antenna MIMO
- • Compact, Low Weight
- • Low PIM
- • High Reliability
- • Support MIMO Technology
- • Simple Installation
Technical Data
Part Number |
|
GR01008 |
||
Electrical Specifications |
||||
Frequency Range |
MHz |
698 - 960 |
1690 - 2700 |
3300 - 4000 |
Gain |
dBi |
5.5 |
8.5 |
7.0 |
VSWR |
|
£ 2.0 |
£ 1.8 |
£ 2.0 |
Polarization |
|
Horizontal + Vertical |
||
Isolation |
dB |
£ 13 |
£ 20 |
|
Front to Back Ratio |
dB |
≥ 8 |
≥ 14 |
≥ 12 |
Horizontal Beamwidth |
|
80° |
65° |
45° |
Vertical Beamwidth |
|
78° |
60° |
35° |
Intermodulation (3rd order) |
dBc |
£ -150 @ 2 x 33dBm |
||
Impedance |
W |
50 |
||
Maximum Input Power |
W |
50 |
||
Lightning Protection |
|
DC Ground |
||
Mechanical Specifications |
||||
Connectors Type |
|
2 x N Female |
||
Dimension |
mm |
315 x 195 x 68 |
||
Weight |
Kg |
0.65 |
||
Reflector Material |
|
Aluminum and PCB |
||
Radome Material |
|
ABS (UV Stabilized) |
||
Environmental Specifications |
||||
Operating Temperature Range |
°C |
-40 to +65 |
||
