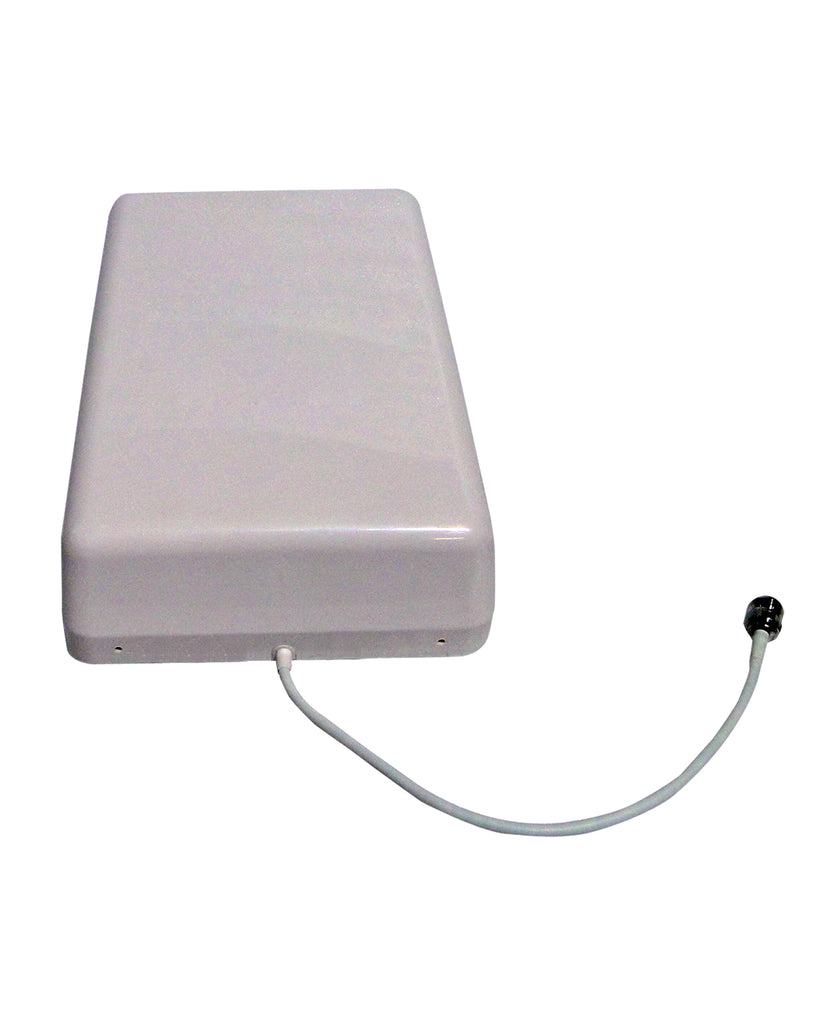

Panel Antenna (380-470MHz), NF

Availability: 100 left in stock

SKU: GR01015

$100.00$110.00-9%

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Reviews

Part Number		GR01015
Electrical Specifications
Frequency Range	MHz	380 – 470
Gain	dBi	5.0
VSWR		≤ 3.0
Polarization		Vertical
PIM	dBc	-150
Horizontal Beamwidth		130°
Vertical Beamwidth		120°
Input Impedance	Ω	50
Maximum Input Power	W	50
Lightning Protection		DC Ground
Mechanical & Environmental Specifications
Connector Type		N-Female
Dimension	mm	315 x 195 x 68
Weight	Kg	0.45
Reflector Material		Aluminum
Radome Material		ABS (UV Stabilized)
Operating Temperature Range	°C	-40 to +65
