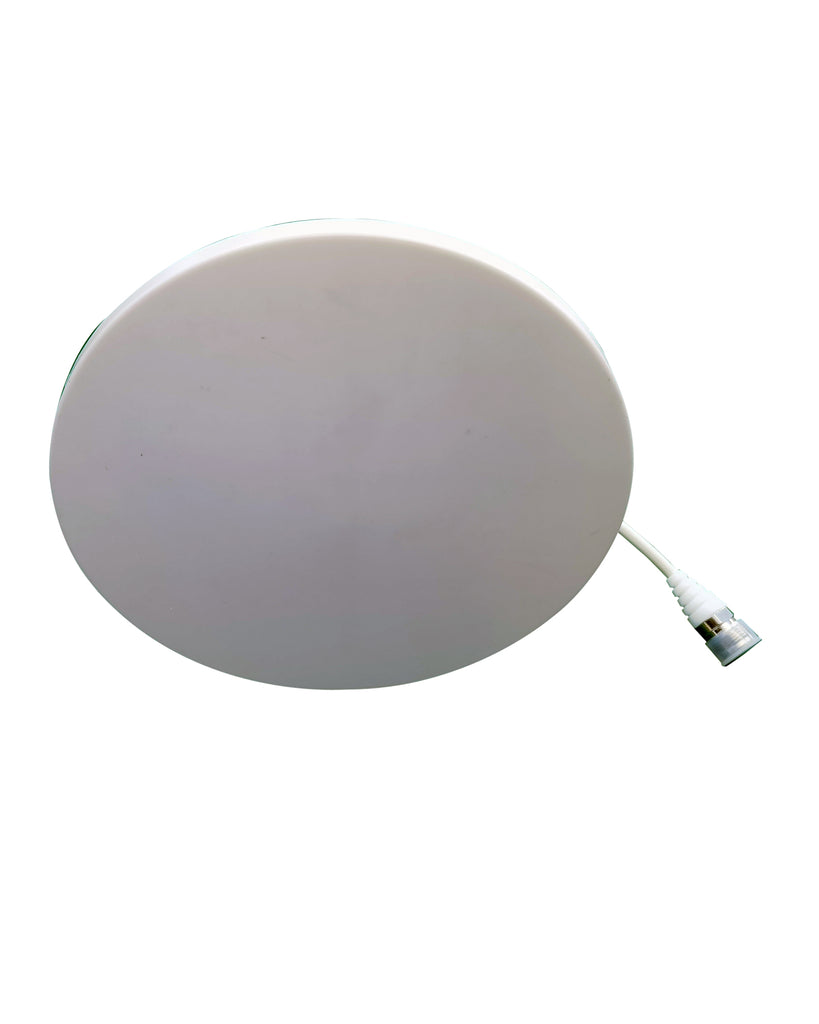

Omni (Flat) Antenna SISO
- • Low PIM
- • Low VSWR
- • High Reliability
- • Horizontal Polarization
- • Support SISO Technology
Technical Data
|
Part Number |
|
GR01003 |
|||
|
Electrical Specifications |
|||||
|
Frequency Range |
MHz |
698-960 |
1710-2170 |
2300-2500 |
2500-2700 |
|
Gain |
dBi |
3.0 |
4.0 |
4.0 |
5.0 |
|
VSWR |
|
£ 2.0 |
|||
|
Polarization |
|
Vertical |
|||
|
Horizontal Beamwidth |
|
360˚ |
|||
|
Vertical Beamwidth |
|
55˚± 10˚ |
|||
|
Intermodulation (3rd order) |
dBc |
£ -130 @ 2 x 33 dBm |
|||
|
Impedance |
W |
50 |
|||
|
Max. Power Handling |
W |
50 |
|||
|
Lightening Protection |
|
DC Ground |
|||
|
Mechanical Specifications |
|||||
|
Connectors Type |
|
N Female |
|||
|
Weight |
Kg |
0.25 |
|||
|
Outer Dimension (D*H) |
mm |
Ø 190 x 7.3 |
|||
|
Radiator Material |
|
Aluminum |
|||
|
Radome Material |
|
ABS (UV Stabilized) |
|||
|
Pigtail |
|
Yes (0.2 mtr) |
|||
|
Mounting |
|
Ceiling Mount |
|||
|
Environmental Specifications |
|||||
|
Operating Temperature Range |
°C |
-40 to +55 |
|||
