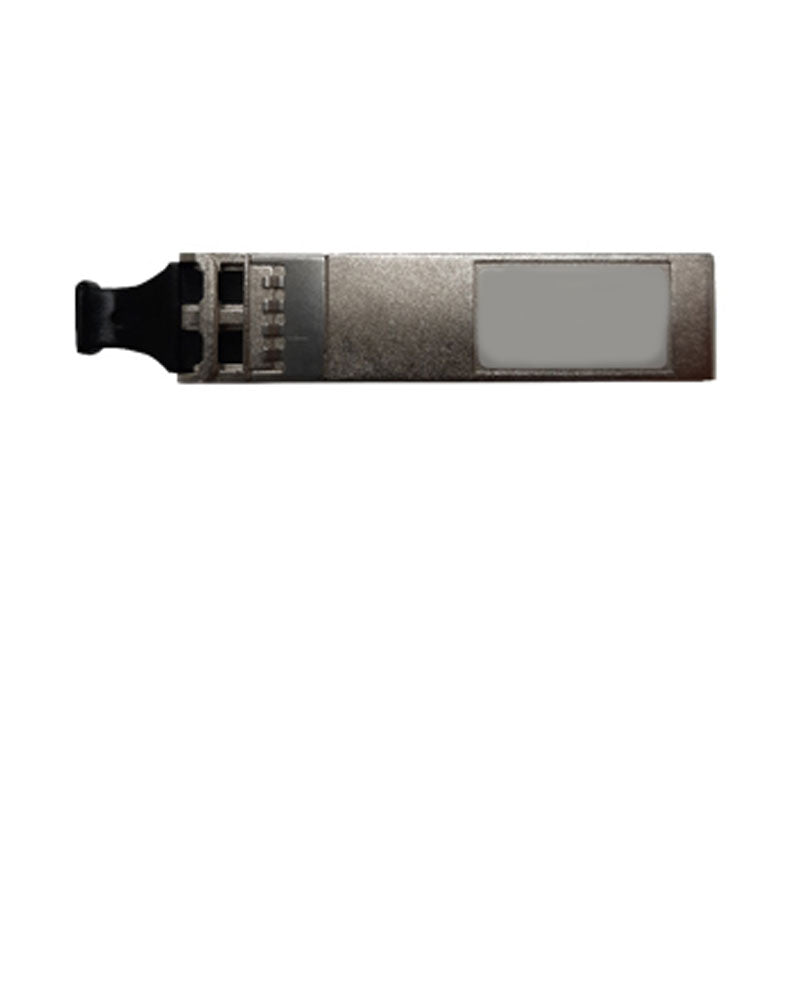

SFP 1G 40 Km Dual Fiber

Availability: 0 left in stock

SKU: P12004

$100.00$120.00-17%

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Reviews

• Up to 40km on 9/125um SMF
• Duplex LC connector
• RoHS Compliant
• Built-in digital diagnostic functions

Technical Data

Part Number		FR-SFP-1G-40-LC-DF
		Min.	Typ.	Max.
General Specifications
Data Rate	Gb/s	-	1.06	-
Operating Temperature	degC	-40	-	85
Storage Temperature	degC	-40	-	85
Supply Current	mA	-	200	300
Input Voltage	V	3.14	3.3	3.46
Maximum Voltage	V	-0.5	-	4
Optical Specifications
Transmitter
Output Optical Power	dBm	0	-	5
Optical Center Wavelength	nm	1270	-	1360
Optical Modulation Amplitude	dBm	174	-	-
Extinction Ratio	dB	9	-	-
Spectral Width(-20dB)	nm	-	-	1
Optical Rise/Fall Time (20%-80%)	ps	-	-	180
Relative Intensity Noise	dB/Hz	-	-	-120
Receiver
Optical Center Wavelength	nm	1270	-	1600
Receiver Sensitivity @1.06Gb/s	dBm	-	-	-27
Optical Return Loss	dB	12	-	-
LOS Assert	dBm	-35	-	-
LOS De-Assert	dBm	-	-	-27
LOS Hysteresis	dB	0.5	-	-
Electrical Specifications
Transmitter
Input Differential Impedance	Ω	-	100	-
Single Ended Data Input Swing	mV	250	-	1200
Transmit Disable Voltage	V	Vcc-1.3	-	Vcc
Transmit Enable Voltage	V	Vee	-	Vee+0.8
Receiver
Single Ended Data Output Swing	mV	300	400	800
Data Output Rise/Fall Time (20%-80%)	ps	-	100	175
LOS Assert	V	Vcc-0.5	-	VccHOST
LOS De-Assert	V	Vee	-	Vee+0.5
