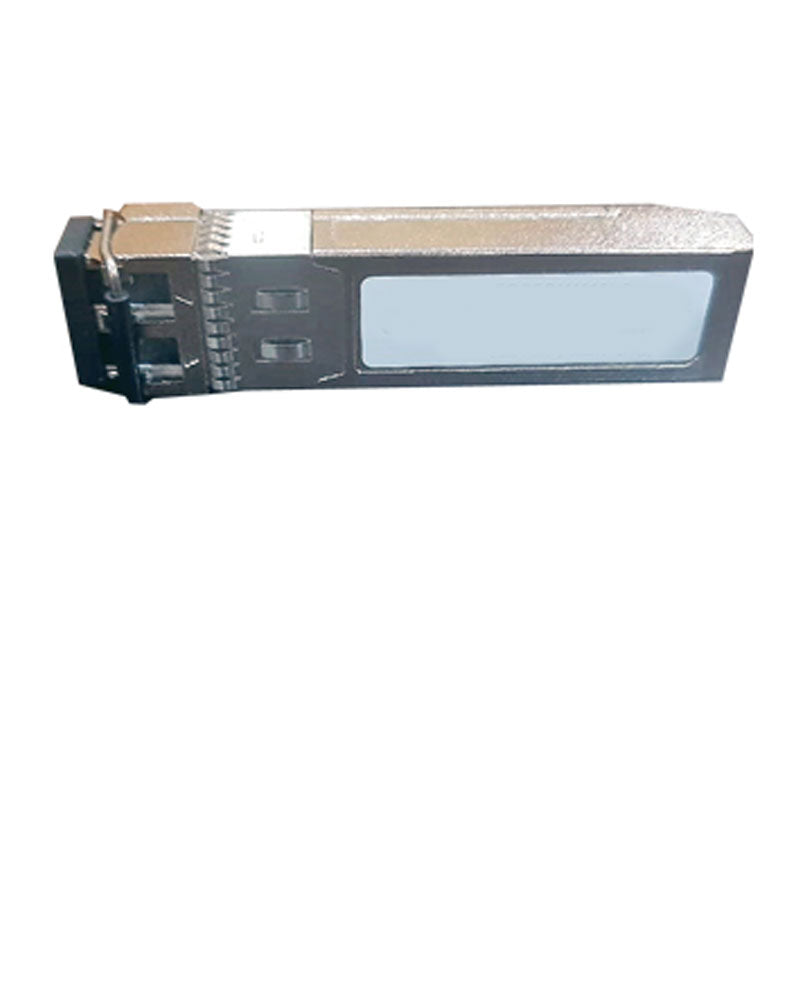

SFP+ 10G 300m Multimode (FR-SFP-MM-10-LC)

Availability: 100 left in stock

SKU: RP12010

$100.00$110.00-9%

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Reviews

• Supports up to 300m
• LC connector
• Built-in digital diagnostic functions

Technical Data

SFP Type	SFP+ Transceiver, 10Gb/s, 300m, Hot Pluggable, Duplex LC, +3.3V, 850nm, VCSEL, Multimode
Electrical Specifications	Min. Value	Typical Value	Max. Value
Supply Voltage, V	3.135	-	3.465
Supply Current, mA	-	-	250
Power Consumption, watt	-	-	1
Transmitter Section
Input Differential Impedance, Ω	-	100	-
Tx Input Single Ended DC Voltage Tolerance (Ref VeeT), V	-0.3	-	4
Differential Input Voltage Swing, mV	180	-	700
Transmit Disable Voltage, V	2	-	Vcc
Transmit Enable Voltage, V	Vee	-	Vee+0.8
Receiver Section
Single Ended Output Voltage Tolerance, V	-0.3	-	4
Rx Output Diff Voltage, mV	300	-	850
Rx Output Rise and Fall Time, ps	30	-	-
LOS Fault, V	2	-	VccHOST
LOS Normal, V	Vee	-	Vee+0.8
Optical Specifications
Transmitter Section
Center Wavelength, nm	840	850	860
