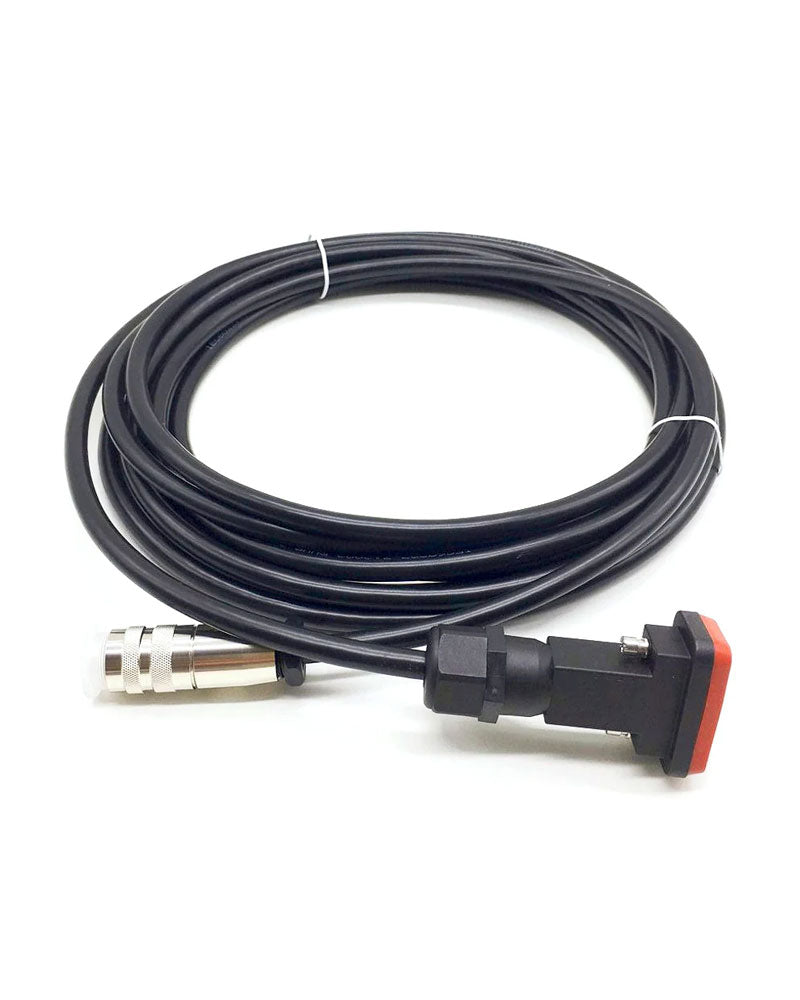

RET Control Jumper Cable with DB15 Male AISG Female

Availability: 119 left in stock

SKU: RP09003-3

$120.00$150.00-20%

3 Mtr

5 Mtr

7 Mtr

- +

Guaranteed safe checkout

INTERNATIONAL	XS	S	M	L	XL	XXL	XXXL
EUROPE	32	34	36	38	40	42	44
US	0	2	4	6	8	10	12
CHEST FIT (INCHES)	28"	30"	32"	34"	36"	38"	40"
CHEST FIT (CM)	716	76	81	86	91.5	96.5	101.1
WAIST FIR (INCHES)	21"	23"	25"	27"	29"	31"	33"
WAIST FIR (CM)	53.5	58.5	63.5	68.5	74	79	84
HIPS FIR (INCHES)	33"	34"	36"	38"	40"	42"	44"
HIPS FIR (CM)	81.5	86.5	91.5	96.5	101	106.5	111.5
SKORT LENGTHS (SM)	36.5	38	39.5	41	42.5	44	45.5

Description Reviews

Part No.		GR09003
Connector Specifications
Connectors		DB15 Male		AISG Female
Inner Conductor		Brass / Gold Plating
Body & Outer Conductor		Brass / Nickel Plating
Insulator		POM
Gasket		Silicon Rubber
Nut		Brass / Nickel Plating
General Specifications
Rate Current, Amp		5
Min. Bend Radius, mm	Single	60
	Multiple	120
Temperature Range, ˚C		-40 to +80
Protection Class		IP68
Pin Configuration
*DB 15 Male Pin Number*			*AISG Female Pin Number*
9			5
13			3
14			7
15			6
