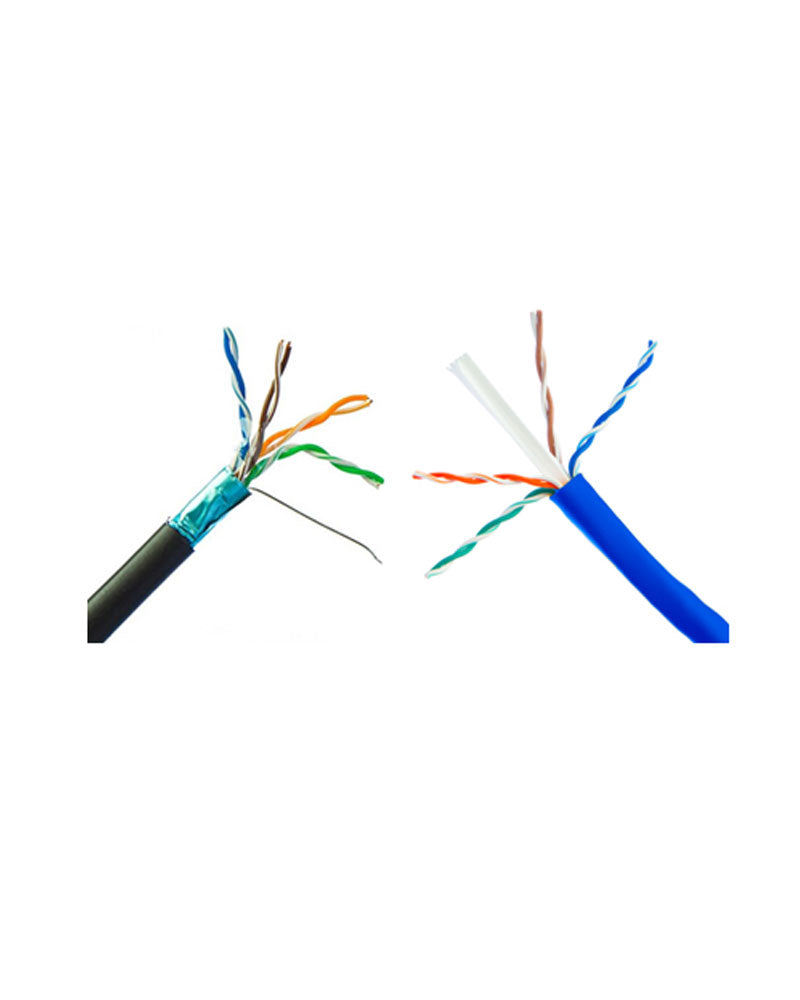

CAT6 SFTP Cable -24AWG
| Part No. | GR10001 | ||
| Specifications | |||
| Conductor-(class-1) | Material | - |
Annealed Bare copper |
| No of Strand | Nos |
1 |
|
| Conductor Dia | mm (nom)
|
0.50 (+/-0.025)
|
|
| Insulation | Material | -- |
HDPE
|
| Twisting | No of Pairs | Nos |
4 |
| Direction | - |
R/H |
|
| Laying (Dummy) | No of Pair | - |
4 |
| Direction | - |
L/H |
|
| Outer Layer | Nos |
4 |
|
| Wrapping | Material | - |
Polyester Tape |
| Coverage | % |
100 |
|
| Screening | Material | - |
Almylar Tape |
| Coverage | % |
100 |
|
| Braiding | Material | - |
Aluminium Wire
|
| Braiding Coverage | % |
50 (nom) |
|
| Outer Sheath | Material | - |
Polyethylene
|
| Dia | mm
|
7.00 ± 0.50 |
|
| Color | - |
Black |
|
| Electrical parameters | Conductor resistance- (max) | Ohm/Km at 20oC |
93.8 |
| Insulation Resistance at 27oC | M/Ohm/km (min)
|
500 |
|
| Mutual Capacitance | pF/km |
56 |
|
| Velocity of propagation | % |
66 |
|
| Tensile Strength (Sheath) | N/sq mm |
10 (min) |
|
| Elongation (Sheath) | % |
300 (min) |
|
